Wastewater Treatment Using Catalytic Oxidation-Water System with Natural Mineral Catalyst





JAPAN

POSTECH

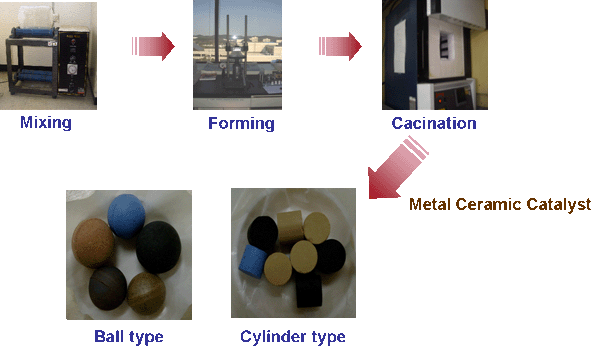

- Mecha-Cera Catalyst

- The Catalytic Oxidation-Water System has been

used in living effluent, odor, VOC and others wastewater treatment.

- Development Catalyst (P1, P2,P3)

- Lab scale test

- Pilot Plant Test

- Current Work

Development of New Type Catalyst to make more cheap and active calyst

--> Natural Mineral Catalyst








>>> Catalytic Oxidant water enhance xidation potential of NaOCl solution

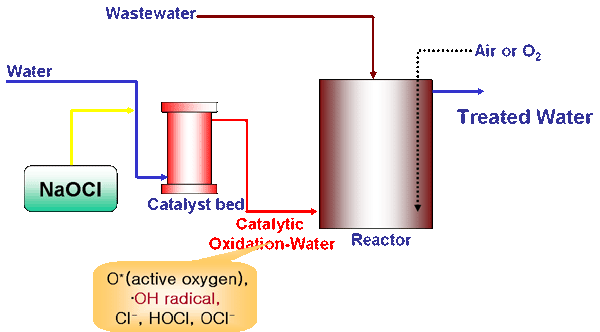

< Catalytic Oxidation-Water System>

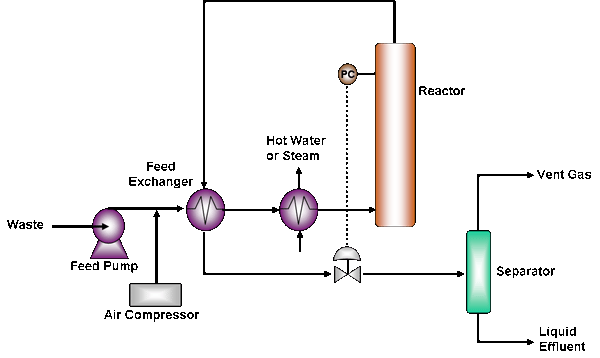

Zimpro process schematic
< Catalytic Wet Oxidation System>




Advantage of COW system

 - Energy saving because of operating in room temperature and 1atm

 - Preventing poisoning catalyst and no need to separate catalyst because of separating catalyst with reactant

 - Easy to make hybrid system because of small size of catalytic bed













Natural mineral

species (wt%)

Titanium magnetite

TiO2 (20.7), Fe2O3 (49.2), SiO2(11.4),
Al
2O3(4.69), MgO(4.78), Na2O(2.19),
CaO(0.73), K2O(0.18),

Magnetite

Fe2O3(90), SiO2(3.0), Al2O3(1.87), CaO(0.02),
MgO(0.06), Mn(0.14), S(0.025), P(0.064),

Rutile

TiO2(95.31), ZrO2(0.75), SiO2(0.70),
Fe
2O3(0.35), Al2O3(0.35)

Kaolin

SiO2(47%), Al2O3(38%), Fe2O3(2.8),
CaO(1.0), K
2O(1.0)

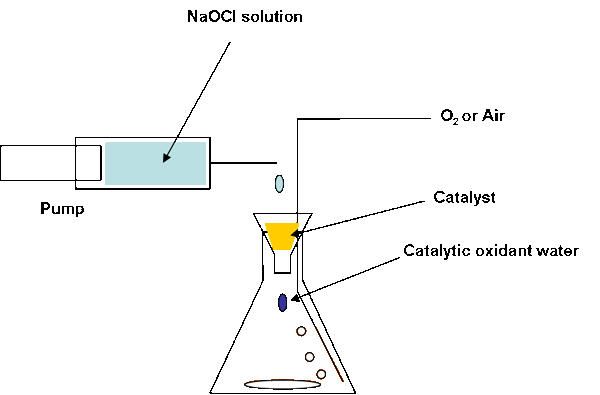

<Batch System>

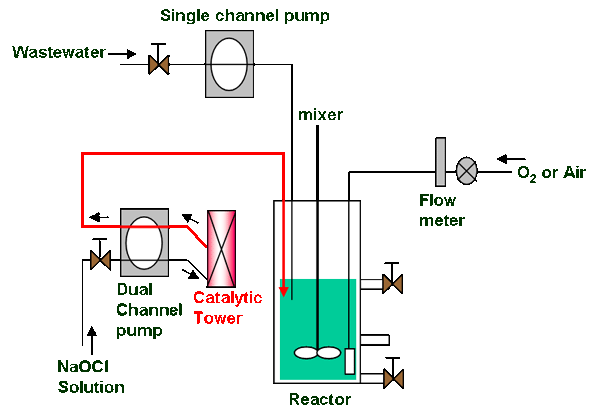

<Continuous System>

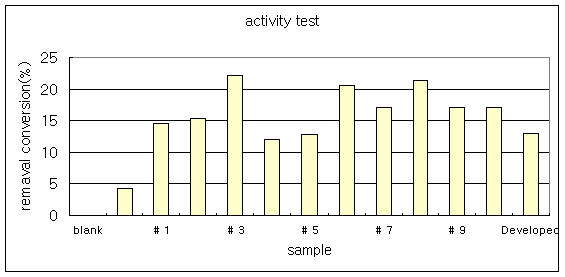

  - # 1  :Titanium magnetite
  - # 2
  : Magnetite
  - # 3
  : Rutile
  - # 4
  : Magnetite + Kaolin
  - # 5
  : Rutile + Kaolin
  - # 6
  : Titanium magnetite + Magnetite + Kaolin
  - # 8
  : Magnetite + Rutile + Kaolin
  - # 9
  : Titanium magnetite + Magnetite + Rutile + Kaolin
  - #10  : Kaolin

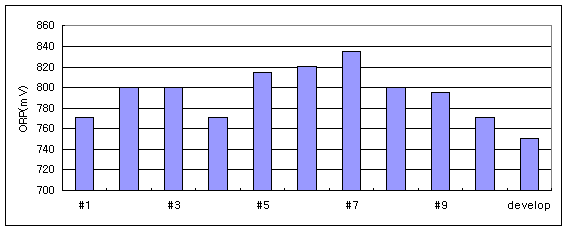

<ORP of NaOCl solution = 660mV>








Experimental condition (Batch System)

   - Orange 2 = 1g/L solution ( CODcr = 1500ppm)

 - NaOCl solution concentration = 200ppm

 - Volume of Orange 2 solution = 100ml

 - Volume of NaOCl solution = 10ml

 - No aeration

 - Vigorous stirring

 - Reaction time = 6 hours

 - Amount of catalyst = 1g

>>> Catalytic Oxidant water enhance Removal of CODcr about 20%







Continuous System

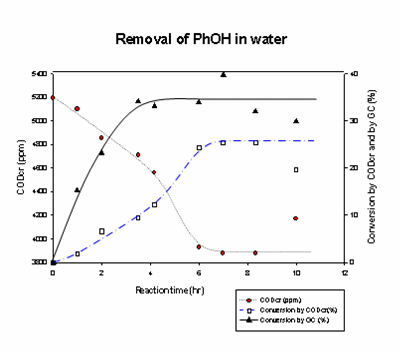

  - 2000 mg/L phenol in H2O
  - 200ppm sodium hypochlorite(NaOCl) solution
  - Phenol solution feeding rate = 2.02 mL / min
  - NaOCl solution feeding rate= 0.18 mL / min
  - Reaction volume = 500mL
  - Stirring rate = 300 rpm
  - O
2 feeding rate = 20 mL / min
  - Reaction Volume of Catalytic Oxidation Tower = 60 mL
  -
Catalyst volume(P1 : P2 : P3 = 1EA : 6EA : 3EA) = 18 mL






Item



Poilot plnat capacity

20m3

Catalyst amount

14 kg (P1 + P2 + P3)

NaOCl concentration

400 ppm

Operating time

10 days

Poliot plant location

Daegu dye industry



Results


  COD removal efficiency

   - Water Treated by catalyst : 22.0 %

   - Final effluent water : 82.3 %

  Color removal efficiency

   - Water Treated by catalyst : 14.6 %


- Final effluent water : 43.8 %








Al

Co

Fe

K

Mg

Si

Ti

# 1

0.0585

0.00208

0.00432

0.2622

0.09166

0.3044

0.00892

# 2

0

0.0022

0.01532

0.2796

0.13036

0.2806

0.01092

# 3

0

0.00348

0.00108

0.3704

0.00512

0.213

0.04992

# 4

0

0.0032

0.00156

0.295

0.00446

0.2616

0.00862

# 5

0

0.0038

0.0014

0.3458

0.02248

0.3404

0.00832

# 6

0

0.00448

0.00232

0.3186

0.01074

0.3692

0.004076

# 7

0

0.00344

0.00288

0.1296

0.00408

0.4014

0.01186

# 8

0

0.00348

0.00204

0.3038

0.00872

0.3094

0.01222

# 9

0

0.00368

0.00316

0.336

0.01424

0.3722

0.01394

# 10

0

0.00384

0.00196

0.662

0.02338

0.3554

0.00754

NaOCl



0.00332

0.00092

0.1587

0.00454

0.5436

0.00136


>>> Leaching out test
      The catalyst didn’t leach out NaOCl solution
