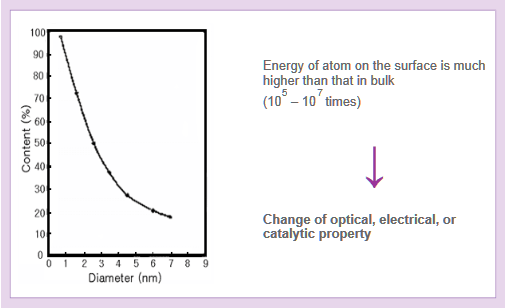

The content of atom on the surface of nanoparticle as a function of Pt nanoparticle diameter

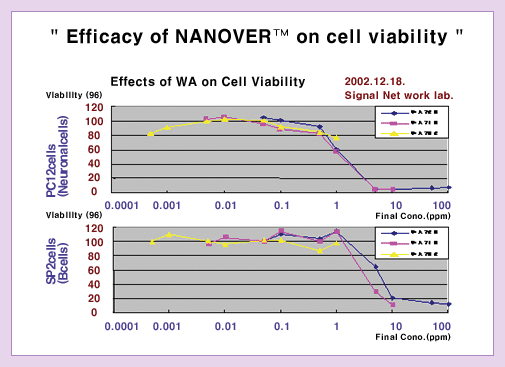

Almost cancer cells are dead at the concentration of 10 ppm of NANOVER









    NANOVER  has strong antimicrobial efficacy against various microorganisms. The table shows the value of the minimal inhibitory concentration (MIC) of each NANOVER SCV-WA series type to inhibit the fission or multiplication of each micro-organism. The other types are presumably equal. The MIC is defined as the lowest concentration of NANOVER  that completely inhibits the growth of microoganisms.


MIC of NANOVER to various microorganisms[unit: μg/ml]

Bacteria

characteristies

MIC for NANOVERTM
SCV-WA

Esherichia coli
ATCC 25922

The pollution indicator of food and drinking water

5

Esherichia coli
0157

The bacteria to cause food poisoning by producing velo toxin

5

Pseudomonas aeruginosa
ATCC27853

The bacteria to cause the decay of fishes and shells

5

Staphylococcus aureus
ATCC29213

The bacteria to cause suppuration, ichoremia and food poisoning, etc.

5

Non-spore forming
Bacillus subtilis

The bacteria to cause the decay of milk, meat, etc.

5

Spore forming
Bacillus subtilis

The bacteria to cause the decay of milk, meat, etc.

5

Salmonella typhimurium

The bacteria to cause typhoidal diseases and food poisoning, etc.

5

MRSA

The bacteria to cause in-hospital infection

5

Candida albicans

It is a kind of fungi that give rise to candida inflammation.

5

P. Vulgaris

It is a kind of fungi that give rise to candida inflammation.

5

Enterococcus faecalis
ATCC29212

It is generated from contaminated food-materials or inferior manufacturing process.

5

    Test method: Agar-dilution method defined by NCCLS
    Department of Internal Medicine, The Catholic University of Korea
    The 54th Conference of The Korean Association of Internal Medicine (2003.10.25)








Green algae are perfectly dead after 60 minutes.

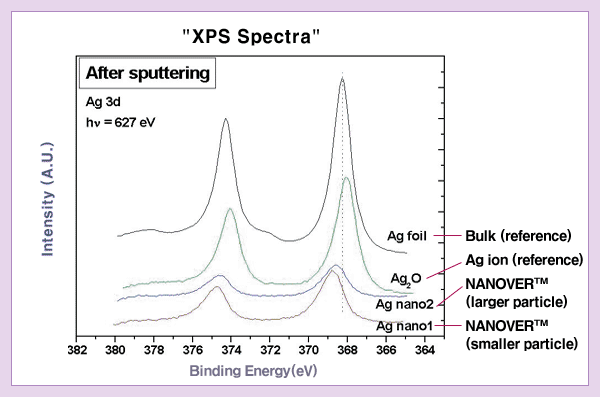

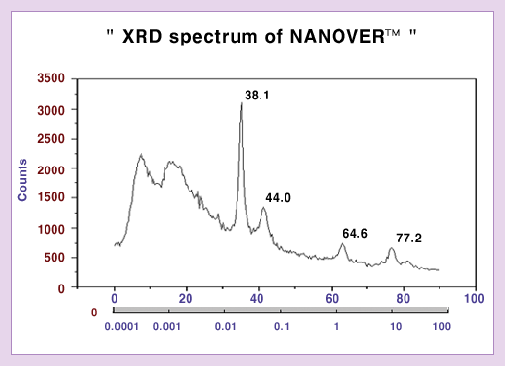

NANOVER is not Ag ion, but metallic nanoparticles














NANOVER
 is not Ag ion, but metallic nanoparticles

    The binding energy of Ag core electron of NANOVER  is higer than Ag bulk (Ag foil) due to size effect of nanoparticles, which is consistent with the known research results.

    In contrast, the binding energy of Ag ion is lower than Ag bulk.

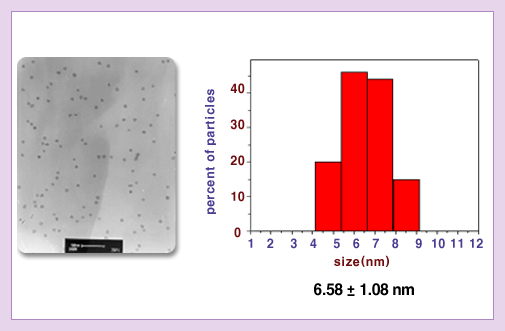

-->uniform shape and very narrow particle distribution

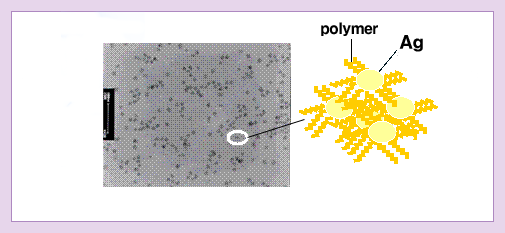

NANOVER (final nanoparticles) consists of several
smaller nanoparticles, called primary nanoparticles.

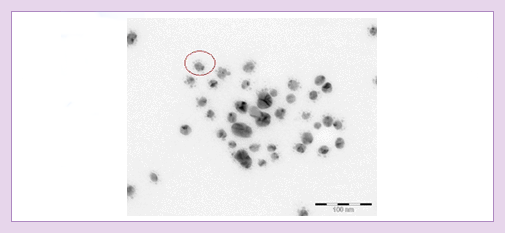

TEM image after dilution of NANOVER™
Final nanoparticles are dissociated into several primary
nanoparticles, which appear such as satellites

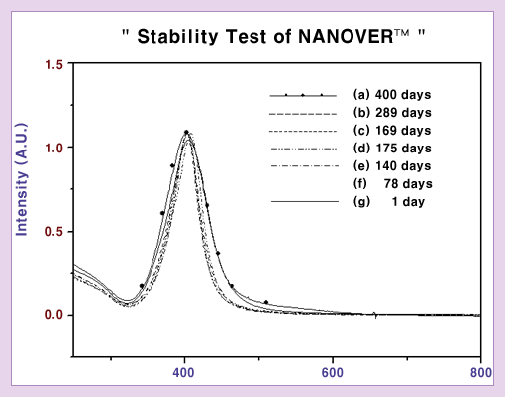

     Good long-term stability





    Absorption band at approx. 400 nm appears due to surface plasmon of silver nanoparticle.
    The absorption band appears even after a year and no absorption band shows at longer wavelength (~ 700 nm) by aggregation of nanoparticles.
    good stability as a function of time










Bacterial growth is present
in laboratory tests

Nanover Handsanitizer kills 99.99% of germs that may cause disease

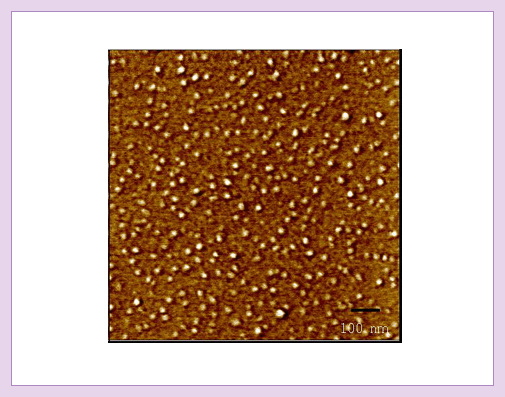

100, 1mm x 1mm


    NANOVER
    ™ was coated on Si wafer. Above AFM (atomic force microscopy) image shows no sign of aggregation Good dispersion on the surface and good adhesion




         Method : KS K 0693
         Sample : dipping in the solution of
    SCV-WA702 (10 ppm) for 30 min.

    Microorganism : Staphylococcus aureus ATCC 6538


blank

treated (99.9%)








blank

after 50 times washing
(99.9%)
